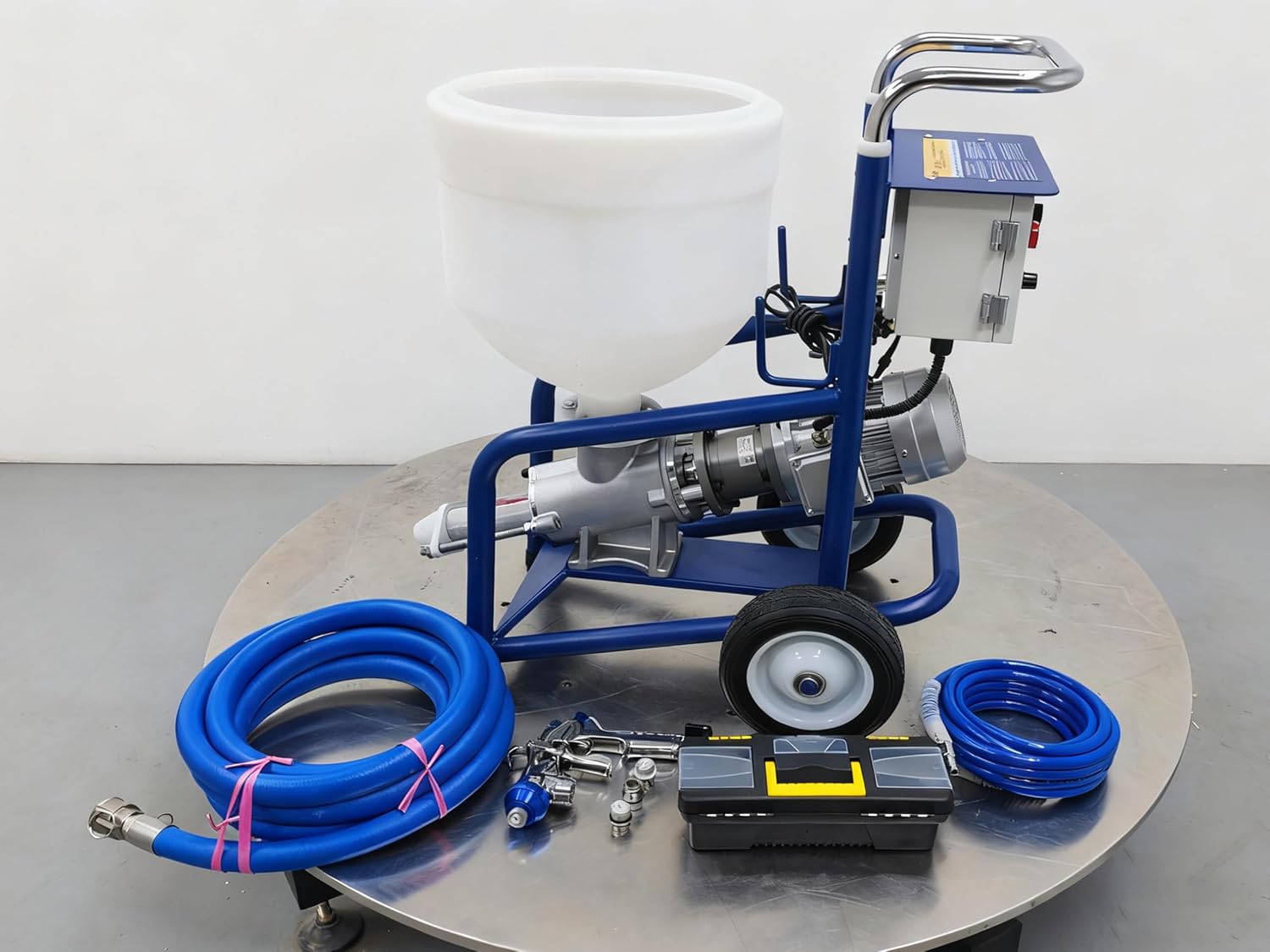

TECHTONGDA Sprayer Multifunctional Mortar Spraying Machine with 28L Hopper, Use for Stone Texture Paint, Real Stone Paint, Latex, and Putty 220V

Operation Way: 1. Do not use this sprayer for the spraying of oily materials. 2. Connect the air pressure sensor to check whether there is air leakage at the connection part of the gas pipe (this machine is pneumatic induction control, air leakage will affect the sensitivity of the switch. 3. Before starting each time, please inject the mixed cooked rubber powder (or diluted real stone paint) into the hopper first. Start the cooked rubber powder or real stone paint from the other end of the high-pressure pipe can flow out. (Before this operation, please remove the nozzle to prevent the residual old material in the material tube from blocking the nozzle. 4. Plug in the power, switch to the automatic position, motor control the switch, and confirm that the switch indicates the automatic state. 5. After turning on the air source switch, slowly adjust the potentiometer switch clockwise, and reconfirm that the material pipe and the connecting parts are intact without leakage, then pour the normal use of real stone paint. When used, the speed should not be too fast, and the corresponding nozzle discharge amount is good enough for normal use, otherwise it will reduce the service life of the rubber sleeve screw. Parameters Properties: DC brushless Motor power: 1800W Rated voltage: 220V Minimum flow rate: 0.6L/min Maximum flow rate: 12L/min Maximum adjustable pressure: 26.46LBS (12 KG) Randomly configured nozzles: 4, 6, 8 Random distribution pipe: 16.4ft(5 meters) Maximum conveying height: 16.4ft(5 meters) Burst pressure of feed pipe:198LBS (90KG) Hopper capacity: 28L Item Number 033297

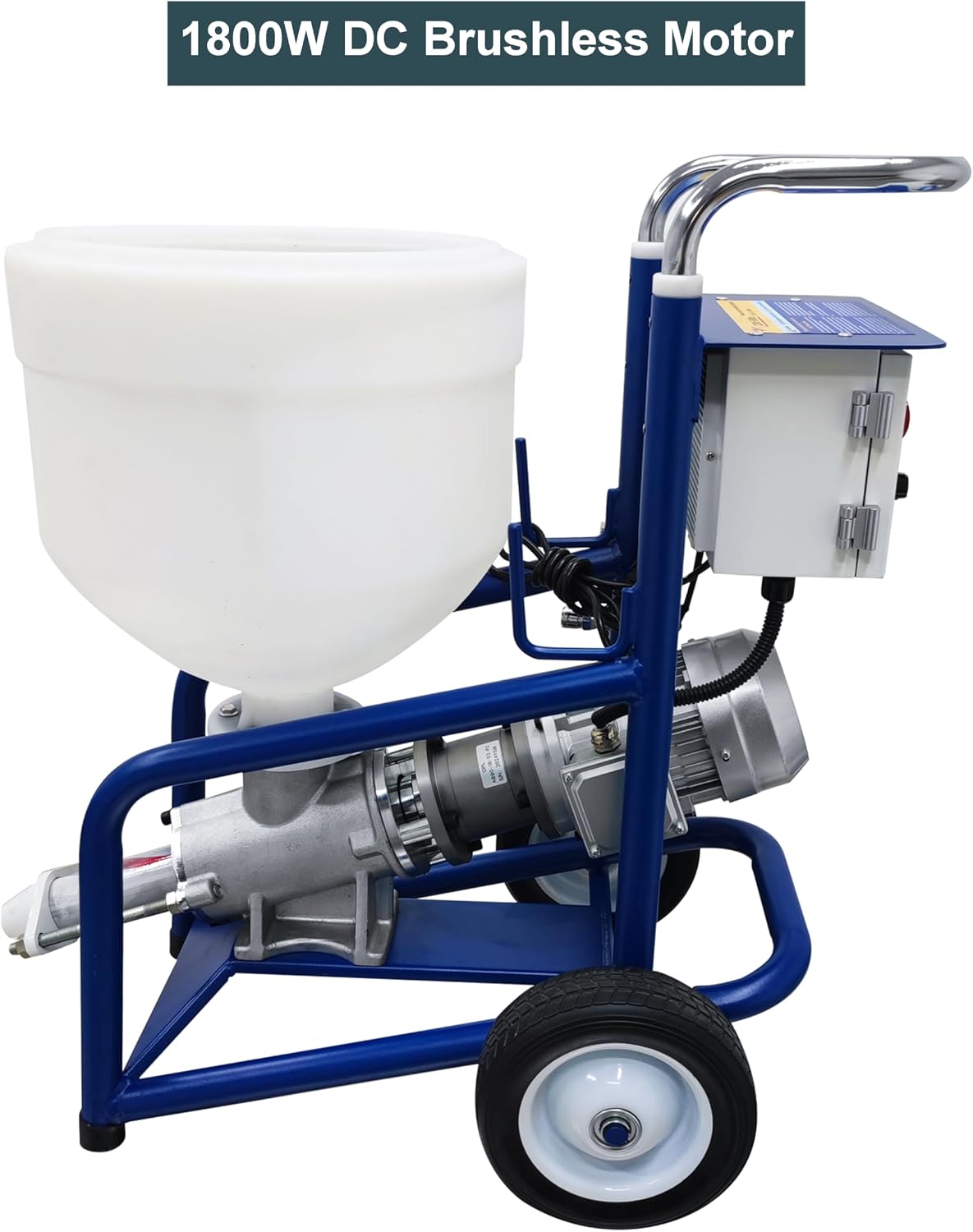

• [Powerful Performance] Equipped with an 1800W DC brushless motor, this sprayer delivers a maximum flow rate of 12L/min and adjustable pressure up to 26.46LBS (12 KG), ensuring efficient application for various materials.
• [High Efficiency] With a minimum flow rate of 0.6L/min and a maximum conveying height of 16.4ft (5m), this sprayer saves you time and labor costs, providing excellent spraying results.
• [User-Friendly Design] Features an open hopper with a diameter of 14.9 inches (38 cm) for easy feeding, along with rubber tires for effortless mobility across job sites. The intuitive operation allows for quick setup and an efficient workflow.
• [Durable Construction] Built with a burst pressure of 198LBS (90KG) for the feed pipe, this spraying machine is designed to withstand rigorous use. Note that different materials may affect the lifespan of wearing parts.
• [Applications] Used for a variety of materials, including stone texture paint, real stone paint, water sand, putty, caulking plaster, latex paint, leveling mortar, bonding mortar and waterproof and fireproof JS.
